High Output Power Up to +20 DBm Tunable Laser Source with FC/APC Optical Connector for B2B Applications
Product Description:

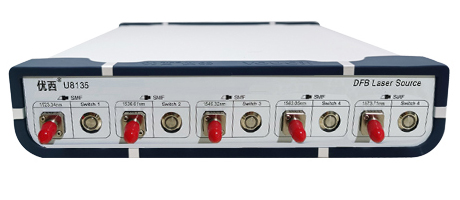

Tunable Laser Source is a reliable and powerful product that delivers exceptional performance. Powered by AC 100-240V, the U8135 multi-channel DFB light source can be used for WDM devices, DWDM devices with high precision WDM, AWG devices with optical waveguide grating array, planar optical waveguide PLC devices, optical amplifier EDFA and other general optical fiber measurement and application. Especially suitable for coupler and planar optical waveguide PLC components of mass production detection. This tunable laser source is designed to last and is guaranteed to provide superior performance.
Features:
- Product Name: U8135 Multichannel DBF Tunable Laser Source
- Control Interface: USB
- Device Package: Butterfly
- Wavelength Range: 1523.34 / 1536.61 / 1549.32 / 1563.05 / 1573.71 nm...
- Weight: 2 Kg
- Connector Type:FC/APC
Technical Parameters:
| Parameters | Detail |
| Wavelength Range | 1523.34 / 1536.61 / 1549.32 / 1563.05 / 1573.71 nm... |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜ 0.5 nm |
| SMSR | ＞ 40 dB |
| Optical Connector | FC/APC |
| Power Supply | AC 100-240V |
| Dimension | 235 mm W, 55 mm H, 320 mm D |
| Weight | 2 Kg |
Support and Services:
Optical Power Meter Technical Support and Service ;
Provide 24/7 online technical support and service.;
Provide maintenance and repair service.
Provide free software updates;
Provide rapid response to product issues;
Provide phone support and troubleshooting;
Provide customer service.
